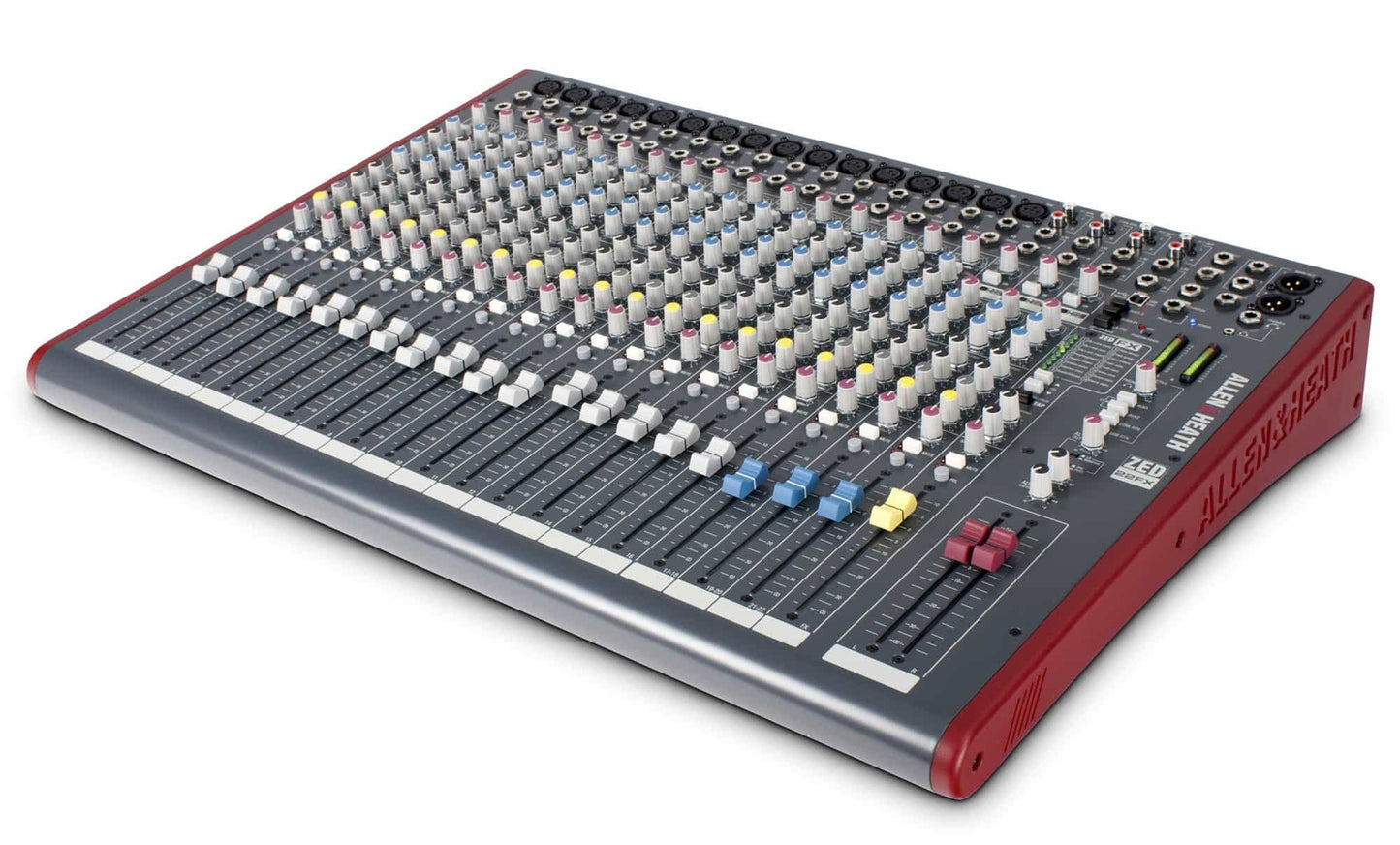

Allen & Heath ZED-22FX - 22-Channel Touring Quality Mixer with Onboard FX and USB I/O (AH-ZED-22FX)

Built-in Effects and It's Record Ready Too! A solid mixer with great effects! The ZED-22 FX is the perfect center to your live rig — and it's also ready to rock in the studio. First of all, the Allen & Heath ZED-22 FX gives you all the connections you need to hook up a small band, duo, or solo performer. Thanks to the 16 mic/line channels you can connect all the mics and DI boxes you need. Plus you've got three dual stereo channels available, each with a gain and 2-band EQ control. The FX in the name, though, is what takes the cake. Here, you can get tweaky with 16 separate effects for nailing the perfect, polished live sound with the ZED-22FX. The record-ready Allen & Heath ZED-22 FX will be the centerpiece to your live sound rig!Tons of power under the hood Those guys and gals at Allen

FEATURES

• • • • DuoPre XLR Microphone preamps, including 48V Phantom power for condenser microphones and up to 69dB of gain. Each preamp uses two gain stages to provide a full and accurate sound across the entire gain range with enough power for even the most gain hungry mics.
      • A 100Hz High Pass Filter on every mono input allows unneeded low frequencies to be removed, then the 3-band MusiQ EQ with swept mid frequency uses carefully selected frequencies to ensure your sound sculpting is always musical. Cut or boost highs and lows with shelving EQ and use the mid frequency selection to choose exactly where to adjust the mid frequencies, especially useful for vocals, guitar and other instruments with a rich mid-range.
      • Two ‘Pre-Fade’ Auxiliary outputs enable separate mixes to be sent to monitor speakers or any feeds that require a mix of channels independent of the main mix. Another two ‘Post-Fade’ Auxiliary outputs sends signal at a level which follows the send level to the main mix, ideal for use with external FX units, feeds to subwoofers or creating a mix for streaming or recording.
      • A built-in, studio quality multi-FX unit provides 16 different, tweakable FX types including reverbs, delays and modulation with tap tempo to keep everything in time. These are not your average compact mixer FX either, using algorithms developed entirely in-house by our DSP experts rather than an ‘off-the-shelf’ chip.
      • A routable stereo-in stereo-out USB connection makes it easy to record the whole main mix or just the channels you need and enables a stereo return from the connected device to be routed back to the mix. It’s also class compliant and does not require drivers, meaning not just Mac and Windows computers can be connected, but also many mobile devices such as tablets or even smart phones.
      • 16 Mic, 16 Line/ Inst, 3 Stereo (2 Left, 2 Right), 2 USB Audio, 1 FX Return
